Timpani

Timpani

Timpani

Handheld tympanometer / Screening audiometer

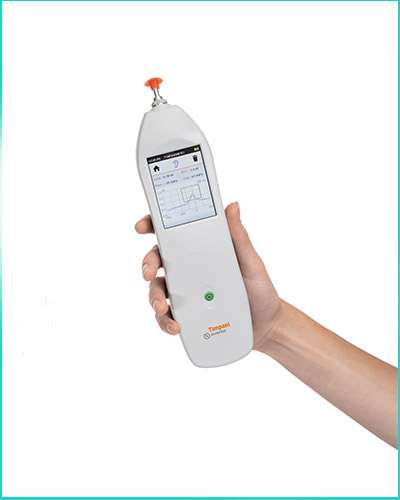

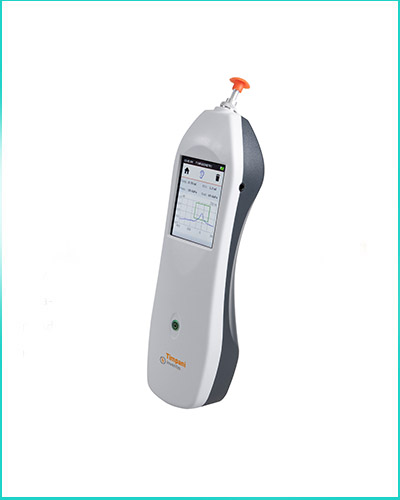

Timpani is a handheld screening tympanometer capable of performing automatic tympanometry exam as well as, optionally licensed, acoustic reflexes test and screening pure tone audiometry. The device features a wide color display with touch screen interface.

AVAILABLE TESTS

  •  1 kHz probe tone license - To conduct tympanometry also on children
  •  Reflex license – Basic – To conduct ipsilateral acoustic reflex test at 1 kHz
  •  Reflex license – Plus – To conduct ipsilateral acoustic reflex test at 0.5, 1, 2 and 4 kHz
  •  Screening Pure Tone Audiometry – To conduct pure tone air conduction audiometry

THE OPTIONAL ACCESSORIES

Upon request, Timpani can be supplied with its docking station, ideal to house the device, to recharge the battery and to transfer data to the PC at the same time. Moreover, it is possible to print your exam’s results directly from the device thanks to the thermal portable mini printer, available upon request too: the communication with Timpani is wireless, via Bluetooth connection.

     Measurement System
  • Probe tone - 226 HZ AT 85 DB SPL 1000 HZ AT 75 DB SPL (OPT.)
  • Compliance range - 0.2 TO 8.0 ML AT 226 HZ / 0.9 TO 16.0 mmho AT 1000 HZ
  •  Pressure range - from - 400 to +200 dapa
  •  Tympanometry
  •  Type of test - Automatic and manual tympanometry
  •  Start - Automatic
  •  Scan rate - 400 daPa/SEC
  •  ACOUSTIC REFLEX (OPT.)
  •  Stimulation - Ipsilateral at 226 HZ
  •  Available tests - Auto Threshold , Fixed Intensity
  •  Stimuli - 1 KHZ (With reflex license basic) / 0.5, 1, 2 AND 4 KHZ (With Reflex License Plus)
  •  Maximum int. - 100 DB HL (IPSI)
  •  Stim. Duration - 1 Sec
  •  AUDIOMETRY (OPT.)
  •  Stimulation - Ipsilateral at 226 HZ
  •  Available tests - Auto Threshold , Fixed Intensity
  •  Intensity - 10 TO 100 DB HL
  •  Frequency range - 125-8000 HZ
  •  Input - PURE TONE
  •  Output - AC
  •  DEVICE SPECIFICATIONS
  •  Memory - 50 Patients
  •  Display type - Color Graphical with Touch Screen
  •  Display size / res. - 2.8”, 240 X 320
  •  Thermal printer - Bluetooth (Opt.)
  •  PC interface - USB (Driverless)
  •  Compatible SW - Inventis maestro or noah with dedicated module
  •  Dimensions- 65 X 44 X 240 MM / 2.6 x 1.8 x 9.5 IN (W X D X H)
  •  Weight - 340 G / 12 OZ
  •  Standards - IMPED.: EN 60645-5 / ANSI S3.39, TYPE 2 / 3
    PTA: EN 60645-1, ANSI S3.6, TYPE 4 / 4
    SAFETY: EN 60601-1
    EMC: EN 60601-1-2
